Dental Imaging VET // CR 8 VET
-
-
Acceptance
Perfect image quality –
film-like or better -
Benefit
Significant reduction
of consumables -
Experience
Awarded technology proven in more than 25.000 units -
Efficient
Workflow tailored
to your needs -
VET specific
Intuitive operation, focused on the veterinary practice
-
-

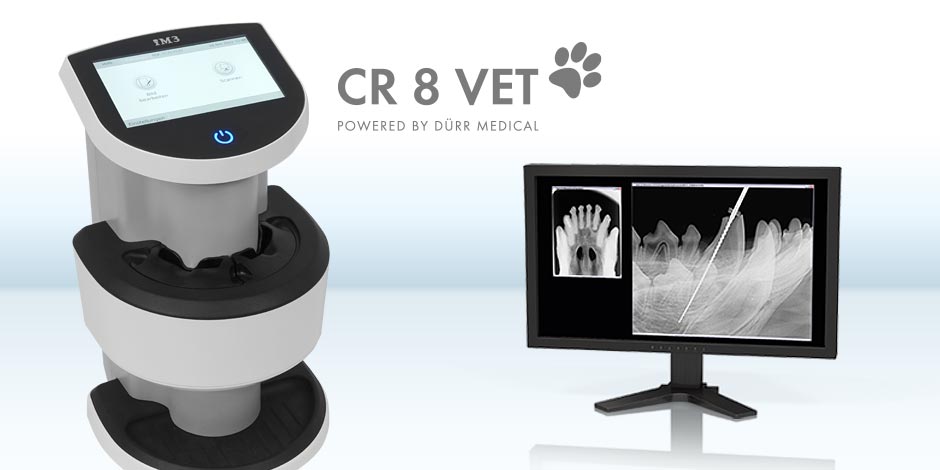

CR 8 VET // The new dual slot intra-oral scanner available in the Veterinary market
The CR 8 VET is a dual slot intra-oral scanner that can provide a complete mouth-series images in minutes with less exposures than other modalities.

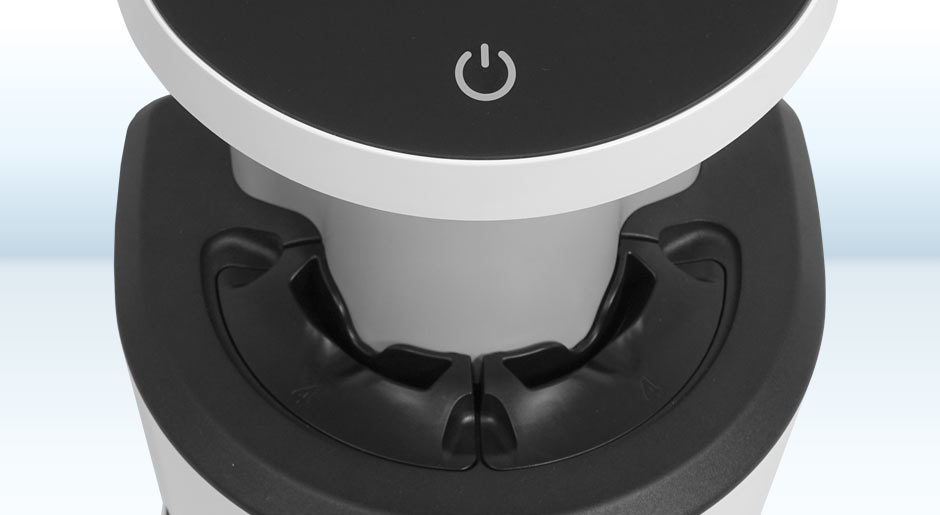

Dual tract
The dual-tract in the CR 8 VET allows you to process two imaging plates of varying sizes at the same time. A complete mouth series with size 4 imaging plates can take a quarter of the time with less exposures as compared to a sensor.UNIQUE DUAL-TRACT
TIME SAVING WORKFLOW
-
Advance your practice to the next level of care // CR 8 VET
Increased Practice Productivity
A faster scan time delivers a full mouth series in just a couple of minutes and the big display shows when the system is ready for use and while reading plates.
Versatile and efficient
The CR 8 VET rapidly produces digital, diagnostic quality
radiographs in all intraoral dental sizes, 0 through 6. The dual plate scanning capability makes it exceptionally efficient during times of heavy workload.Superb diagnostics
Exceptional diagnostic image quality helps you detect
pathologies under the gum that are not visible during a routine exam without radiographs.ALL DENTAL SIZES
SMALLEST FOOTPRINT
Highest image quality
Delivers 40 LP/mm theoretical, with 25 LP/mm actual.
Dual plate scanning
CR 8 VETis capable of reading images simultaneously from 2 image plates.
Cost-effective
Both practical and cost-effective, CR 8 VET will pay for itself in less than a year.Image plates

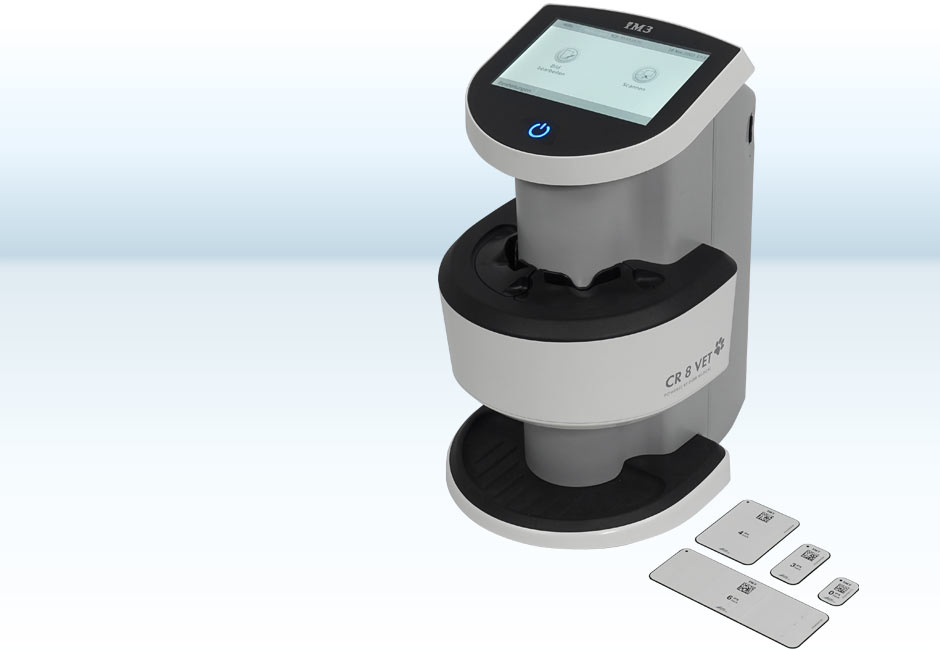

Utilizes reusable and flexible imaging plates in all sizes, 0, 1, 2, 3, 4, 4C, 5, 6 and R3.
-
-
-
Technical data // CR 8 VET
Dimensions (H x W x D) 12” x 10” x 10.375” / 30.5 x 25.4 x 26.4 cm Weight 17.64 lbs / 8 kg Electrical 100 – 240 V / 50/60 Hz Resolution 40 LP/mm theoretical, with 25 LP/mm actual Plate size S0 – S6 Laser class IEC 60825-1: 2014 3B Warranty 2 Years System includes Power supply unit, AC power cables, Ethernet cable (unshielded), SDHC memory card, WLAN stick (already installed), plate guides size 2, 4/5, and 6, Image Plate Cleaning Wipes, dust cover, transfer box, CR 8 VET Quick Start Guide
-
Optional Accessories // CR 8 VET
-

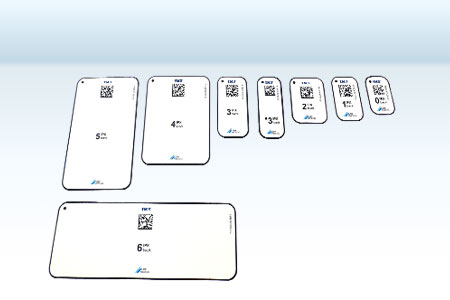

Dental imaging plates (IP) VET
Accept all standard dental size plates and custom sizes like 3R, 5 and 6.
-
Plate guides
Customizable track control intraoral plate guides for all dental sizes, 0 through 6.
