  • Intra-oral X-ray Generator VET // ProVectaHD

    Features // Download // Technical data

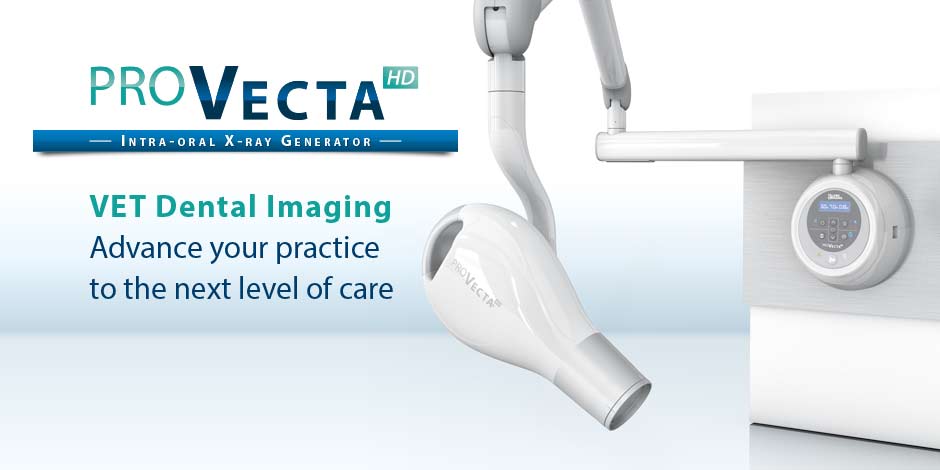

  • ProVecta HD - Intra-oral X-ray Generator - VET Dental Imaging - Advance your practice to the next level of care
    • Intra-oral

      High resolution images
      for safe results
    • Crystal clear

      0.4 mm focal point
      for maximum image sharpness
    • Benefit

      Significant reduction
      of consumables
    • Efficient

      Workflow tailored
      to your needs
    • VET specific

      Intuitive operation, focused on the veterinary practice
  • Impressive functions in a single device // ProVectaHD

    Advanced ergonomics for advanced comfort

    Our special generator head-handle not only allows precise positioning, it makes the process more comfortable for both the operator and the patient.

    DC tube to minimize radiation dosage

    DC tube guarantees constant level energy for brilliant images. Reduces the patient dose by more than 25% in comparison to conventional AC units, ensuring greater safety for your patients and staff.

    Control panel for faster workflow and fewer errors

    User-friendly display features intuitive icons for quick and accurate selection of tooth area, size of patient, type of radiograph remotely using CAT-5 cable.

    Space-saving design

    This state-of-the-art design with small footprint and right angle/parallel technology, allows for installation and operation in less space.

    • HIGH RESOLUTION
    • SPECIFICALLY FOR VETS
    • INTUITIVE DISPLAY CONTROL
    • REMOTE SWITCH CAPABILITY

    Ergonomic design

    Simple and flexible operation.


    Easy positioning

    Generator head-handle allows precise positioning that stays in place.


    Easy alignment

    Right-angle/parallel technology for precise alignment.

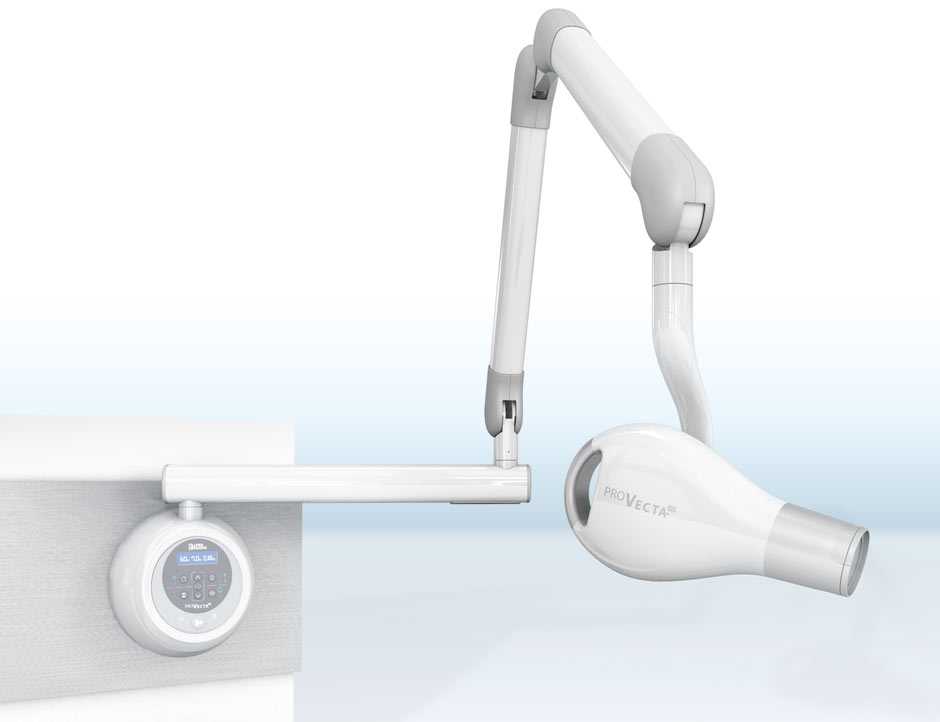

    ProVecta HD - Intra-oral X-ray Generator for veterinarians

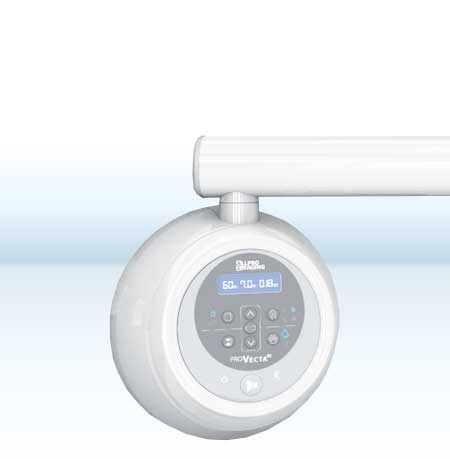

  • Multi-functional display

    // kV, mA, sec, DAP indicator
    // Change between PSP/Sensor or Film/Sensor
    // Change of tooth area
    // Change between small and large animal
    // Expose button (in addition to the hand switch)
    ProVecta HD - Intra-oral X-ray Generator - Multifunctional display

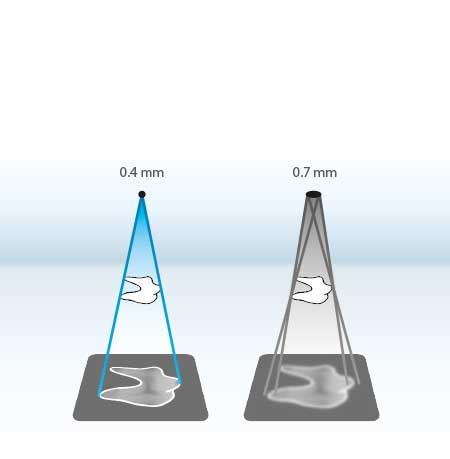

  • Unsurpassed image resolution

    While most X-ray units have a 0.7 mm focal point, the ProVectaHD features a 0.4 mm focal point for maximum image sharpness.

    The smaller the focal spot, the greater the contras resolution, which provides sharper edge definition and finer details of internal structures.
    ProVecta HD - Intra-oral X-ray Generator - smallest focal spot
  • ScanX DR Dental X-ray Sensor
  • more >>>
    ProVect HD - Download brochure PDF
  • Technical data // ProVectaHD

    Power input AC 100 - 240 V +/- 10% , 50/60 Hz
    Power rating 500 W
    Tube voltage 60 - 70 kVp
    Tube current 4 - 7 mA
    Tube length 8“ (12“ optional)
    Radiation field limits 2.4“/1.2“ x 1.6“ (0.8“ x 1.2“ optional)
    Exposure time 0.04 - 2 sec
    Focal spot size 0.4 mm (IEC 60336)
    Total filtration Min. 2.0 mm Al
    Weight 55/56/59 lbs (short/medium/long arm)
    Storage height 46"
    Extended arm length 66", 72" and 84"
    ProVecta HD extended arm length - 74“ (68“ and 86“ optional) - Height 21" - 360° rotation
