Full Body Imaging VET // ScanX DR Flatpanel
-
-
Acceptance
Sharp detailed image quality -
Benefit
Increased volume and eliminate dark room -
Crystal clear
Superior Image Quality for better diagnostics -
Efficient
Workflow tailored
to your needs -
VET specific
Intuitive operation, focused on the veterinary practice
-
-
Uncover treatment opportunities you cannot afford to miss // ScanX DR Flatpanel
NO Modification, Simple Transition to DR

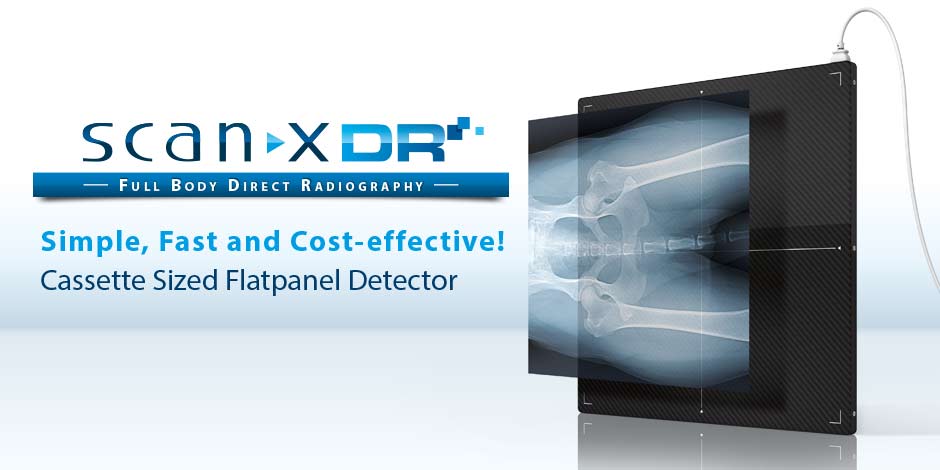

Designed to fit into standard table or wall-stand bucky tray, this ultra thin and light detector allows digitizing without modification of existing conventional imaging systems. With the largest effective imaging area of 17“ by 17“, the ScanX DR Flatpanel allows high productivity with no detector rotation unlike other 14“ by 17“ detectors.
NO Generator Connection, Plug & Play
ScanX DR Flatpanel does not require a cable connection with the X-Ray generator to synchronize the signals. The Auto-sensor will take care of the exposure timing. ScanX DR Flatpanel works with any existing X-Ray system non-invasively. Skip technical and electrical steps. Just “PLUG and PLAY”.Mobile
The very light weight provides the most flexible mobile device available today. “Instant On” means no delay in setup. Generator lndependence means you can use any X-Ray source available and the 17” by 17” size offers 20% more coverage with the same physical size as traditional 14” by 17” devices.
HIGHEST PRODUCTIVITY
AUTO-SENSOR
MOBILE OPERATION
-
Discover the benefits of Direct Radiography // ScanX DR Flatpanel
Digital Radiography (DR) provides real-time high-resolution imaging after being exposed with your x-ray generator.
The high-resolution latent image is automatically displayed on your computer screen in a matter of seconds.
The optimized digital images can be shared directly with other users and easily archived.SIMPLEST WORKFLOW
INSTANTANEOUS IMAGE ACQUISITION
HIGHEST IMAGE QUALITY
-
-
Technical data // ScanX Duo
Dimensions (H x W x D) 462 x 464 x 15 mm (Cassette-Sized for the standard table or wall bucky) Weight 8.4 lbs / 3.8 kg Electrical 110 – 240 VAC, 50 – 60 Hz Sensor a-Si TFT array Flat Panel Detector Conversion Screen HDPlus or CsI Active Area 17” x 17” / 430 x 430 mm Spatial Resolution 3.6 lp / mm Sensor Pixel 3,072 x 3,072 Pixel Pitch 139 μm A/D Conversion 14 bits Image Capture Cycle Time 10 seconds (approximately) Wired Interface (Data Output) Gigabit Auto Trigger Auto X-ray sensor Warranty 2 Years
