  • Full body & Equine Imaging VET // ScanX Trek

    Features // Technology // Download // Technical data // Accessories
  • ScanX Trek - portable CR System for the mobile equine practice -
    • Acceptance

      Perfect image quality –
      film-like or better
    • Benefit

      Significant reduction
      of consumables
    • Experience

      Awarded technology proven in more than 25.000 units
    • Efficient

      Workflow tailored
      to your needs
    • VET specific

      Intuitive operation, focused on the mobile veterinary practice
  • Perfectly suited for the rigors of work in the field in the ambulatory practice // ScanX Trek

    Premium quality images in seconds

    You need a diagnostic quality image fast — without the need to return for retakes. Thanks to the ScanX Trek, that’s never been easier.

    ScanX Trek is the lightest, most portable and rugged digital imaging system in the industry. Developed exclusively for full body and equine veterinarian by ALLPRO Imaging, ScanX Trek produces high-resolution digital images in as little as 35 seconds. Veterinarians can take more images and make a diagnosis on the spot, while eliminating the need to chemically process X-rays or return to the stable or barn for retakes.

    Built for durability and economy

    The cushioned, lightweight extruded aluminum frame helps to resist dents. Sturdy, rubberized feet eliminate
    potential image quality issues due to vibration. And, a
    built-in rechargeable battery option and DC power port
    enable operation in virtually any setting.
    • HIGH CONTRAST
    • PORTABLE AND RUGGED
    • BATTERY OPTION
    • UP TO 14” x 17” IMAGING AREA

    Non-slip surface

    Leightweight rigid case protects the scanner during transport.

    Throughput

    Scan and erase in a single pass.

    Robust design

    Light, portable and rugged – ideal for field applications.

    Integrated battery

    Rechargeable battery option allows truly remote operation.
    ScanX Trek - Computed Radiography system - Portable CR System with Hard Case
  • Promotion // ScanX Trek

  • What is CR technology? - How does it work?
  • more >>>
    ScanX Trek - Download brochure PDF
  • Technical data // ScanX Trek

    Dimensions (H x W x D) 14” x 15.5” x 18” / 36 x 39 x 46 cm
    Weight 44 lbs. / 20 kg – with battery 46 lbs. / 21 kg
    Electrical 110 – 240 VAC, 50 – 60 Hz
    Resolution up to 7 LP/mm (50 μm)
    Plate sizes all standard sizes through 14” x 17”
    Laser class extern Class 1 Laser Product
    Compliance with FDA HHS 21 CFR 1040.10 and IEC 60825-1
    PC connection USB connection
    Warranty 2 Years
    System includes Power Cord and USB Cable
  • Optional accessories // ScanX Trek

  • Image plates (IP)

    IPs in all standard sizes
    through 14” x 17”.
    Plate protectors and
    cassettes are available.
    ScanX Trek - Accessorie - Image plates - all sizes

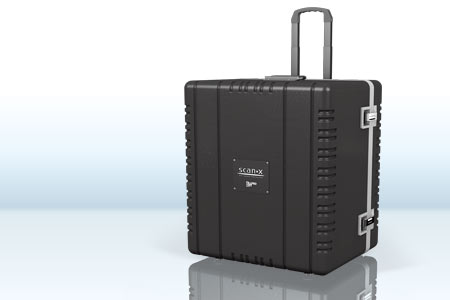

  • Hard carry case

    Lightweight case for
    scanner transport
    ScanX Trek - Accessorie - Hard carry case
